Proton-M - SES 1, Launched April 24, 2010

[Zipi]

Launch time: 11:19 GMT (7:19 a.m. EDT)
Launch site: Baikonur Cosmodrome, Kazakhstan

An International Launch Services Proton rocket with a Breeze M upper stage will deploy the SES 1 telecommunications spacecraft. The satellite will provide direct-to-home services to North America for SES World Skies.

Live stream from TV Tsenki: http://www.tv-tsenki.com/livechoose.php
Live stream from ILS: http://amc4r42410.imgondemand.com/
ILS Video FAQ: http://amc4r42410.imgondemand.com/ILS_FAQ_041310.pdf

Proton Rocket Wikipedia Article: http://en.wikipedia.org/wiki/Proton_(rocket)
Proton-M Wikipedia Article: http://en.wikipedia.org/wiki/Proton-M
Khrunichev's Proton Page: http://www.khrunichev.ru/main.php?id=42&lang=en
Khrunichev's Proton Photo Gallery: http://www.khrunichev.ru/main.php?id=135&lang=en



ILS Launch Mission Control Page: http://www.ilslaunch.com/ses-1-mission-control/
ILS Mission Overview PDF: http://www.ilslaunch.com/assets/pdf/SES-1-MO-final.pdf
ILS Launch Blog: http://www.ilslaunch.com/ses-1-blog
ILS Photo Gallery: http://www.ilslaunch.com/ses-1-gallery
ILS Media Advisory: http://www.ilslaunch.com/news-041910

SES-1 Wikipedia Article: http://en.wikipedia.org/wiki/SES_S.A.
Orbital Sciences SES-1/2/3 Page: http://www.orbital.com/SatellitesSpace/ ... ons/AMC5R/



Some Specs about SES-1/2/3:

C-Band
Repeater: Two groups of 16-for-12 SSPAs
SSPA Power: 20 W RF
Antennas: 2.3m dual gridded shaped deployable reflector

Ku-Band
Repeater: Two groups of 16-for-12 linearized TWTAs
TWTA Power: 90 W RF
Antennas: 2.3m dual gridded shaped deployable reflector

Stabilization: 3-axis stabilized
Launch Mass: 3,170 kg (6,989 lb.)
Mission Life: 15 years (fueled for >16 years)



[Zipi]

Re: April 24, Proton-M - SES 1

Proton-M First Stage:

Six RD-275M Engines burning N[sub]2[/sub]O[sub]4[/sub]/UDMH. RD-275M is a further developed version from originally used RD-253 engine. Central tank contains the oxidizer and six outer tanks the fuel.

RD-275 Wikipedia Article: http://en.wikipedia.org/wiki/RD-275
NPO Energomash RD-275 Page: http://www.npoenergomash.ru/eng/engines/rd253/ (all engine evolutions)
ILS Launch Proton Fact Sheets: http://www.ilslaunch.com/proton-breeze-m/

Proton-M Second Stage:

Three RD-0210 and one RD-0211 burning N[sub]2[/sub]O[sub]4[/sub]/UDMH. These engines are similar, but RD-0211 is the only one providing tank pressurization.

Khrunichev RD-0210 & RD-0211 Page: http://www.khrunichev.ru/main.php?id=100&lang=en
Astronautix RD-0210 Page: http://www.astronautix.com/engines/rd0210.htm
Astronautix RD-0211 Page: http://www.astronautix.com/engines/rd0211.htm
Some more: http://www.asi.org/adb/04/03/09/01/npo- ... html#13-02





Proton-M Third Stage:

One RD-0212 engine cluster consisting of one RD-0213 for main propulsion and four RD-0214 for steering. All engines are burning N[sub]2[/sub]O[sub]4[/sub]/UDMH.

Khurinichev RD-0212 Page: http://www.khrunichev.ru/main.php?id=94&lang=en
Astronautix RD-0212 Page: http://www.astronautix.com/engines/rd0212.htm
Astronautix RD-0213 Page: http://www.astronautix.com/engines/rd0213.htm
Astronautix RD-0214 Page: http://www.astronautix.com/engines/rd0214.htm





Proton-M Fourth Stage:

This launch is using Breeze-M upper stage. It consists from two modules, donut shaped add-on tank (which is jettisonable) and core module (Breeze-KM) with one RD-2000 engine burning N[sub]2[/sub]O[sub]4[/sub]/UDMH. It can be started up to 8 times during the flight which provides excellect accuracy to payload orbit placement.

Breeze-M Wikipedia Article: http://en.wikipedia.org/wiki/Briz-M
Khrunichev Breeze-M Page: http://www.khrunichev.ru/main.php?id=49&lang=en (manufacturer)
Astronautix Breeze-M Page: http://www.astronautix.com/craft/brizm.htm



[Zipi]

Re: April 24, Proton-M - SES 1

Proton M with AMC-4R (SES-1) Satellite Rolled Out To Launch Pad
20.04.2010

Baikonur Cosmodrome. Today the Proton launch vehicle with the AMC-4R (SES-1) spacecraft has been rolled out from the technological fueling station (Area 92) to launch pad (Area 200). The launcher has been erected vertically onto the launch table. The Russian State Commission yesterday gave the go ahead for the rollout operations.

Final pre-launch processing of the Proton LV and launch facilities will take three days.

The lift off of the Proton M launch vehicle with AMC-4R satellite is scheduled for April 24.

Full Proton-M/SES-1 erection photo report: http://www.khrunichev.ru/main.php?id=1&nid=538&lang=en



[Zipi]

Re: April 24, Proton-M - SES 1

Khrunichev Coopi Info's: http://coopi.khrunichev.ru/main.php?id=479&lang=en



[EarthlingX]

Re: April 24, Proton-M - SES 1

Oh, nice



[Zipi]

Re: April 24, Proton-M - SES 1

Proton arrives to pad:
[youtube]http://www.youtube.com/watch?v=0Clxxeuz4-8[/youtube]



[EarthlingX]

Re: April 24, Proton-M - SES 1

http://www.federalspace.ru : Proton-M Blasts Off from Baikonur

:: 24.04.2010

Russian Proton launcher successfully lifted off from Baikonur`s pad 200 today. The Proton carries US telecommunication satellite AMC-4R aboard.
The lift-off occurred precisely on time, at 15:19 MSK. In several hours (00:17 MSK) the satellite will be separated from the Breeze-M upper stage.

[youtube]http://www.youtube.com/watch?v=SISOLFwpuk4[/youtube]

[youtube]http://www.youtube.com/watch?v=_X8-8O2uTHo[/youtube]



[EarthlingX]

Re: April 24, Proton-M - SES 1

AMC-4R Reaches the Orbit. The Spacecraft is Now Under Customer's Control

:: 25.04.2010

Roscosmos expert groups yesterday launched Proton rocket with US telecommunication satellite AMC-4R aboard.

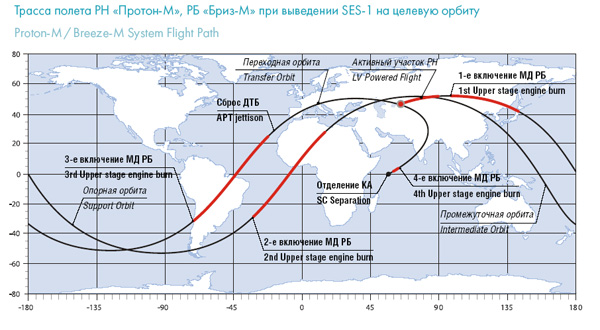

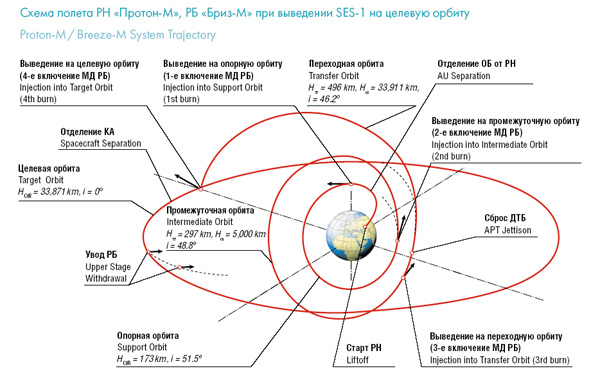

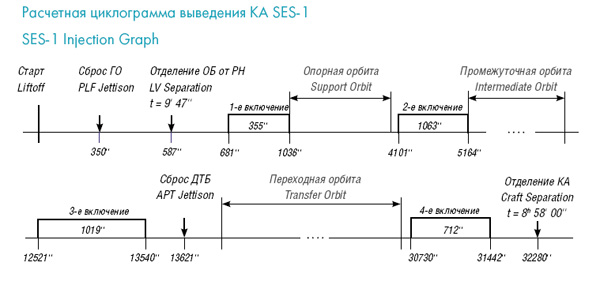

The lift-off occurred precisely on time, at 15:19 MSK. At 00:17 MSK, April 25, the satellite separated from the Breeze-M upper stage and reached the targeted obit. The injection by Breeze-M was carried out by 4 firings of the upper stage’s propulsion system.
AMC-4R is now under customer’s control. The spacecraft is operated by SES WORLD SKIES, which currently tests AMC-4R systems.

Roscosmos PAO



[Zipi]

Re: April 24, Proton-M - SES 1

SiberianTiger's Proton-M/SES-1 infopack: http://www.orbiter-forum.com/showthread.php?t=15396



[EarthlingX]

Re: April 24, Proton-M - SES 1

SiberianTiger's Proton-M/SES-1 infopack: http://www.orbiter-forum.com/showthread.php?t=15396

Yea, he rox

Just some non-related images, lovely, gives some background to the story - Tiger covers a lot of details

Space dogs

Neighbours :

Flowers :

The rocket :

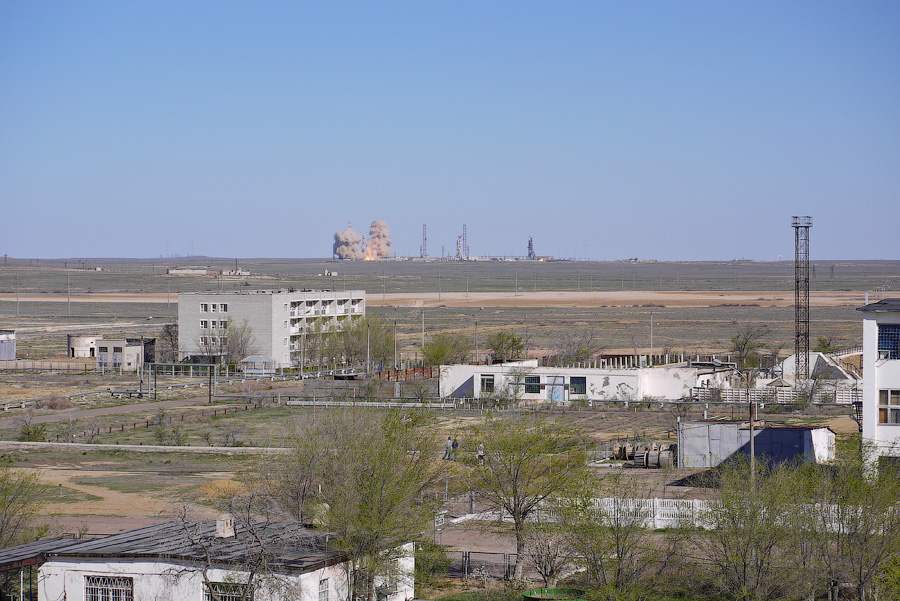

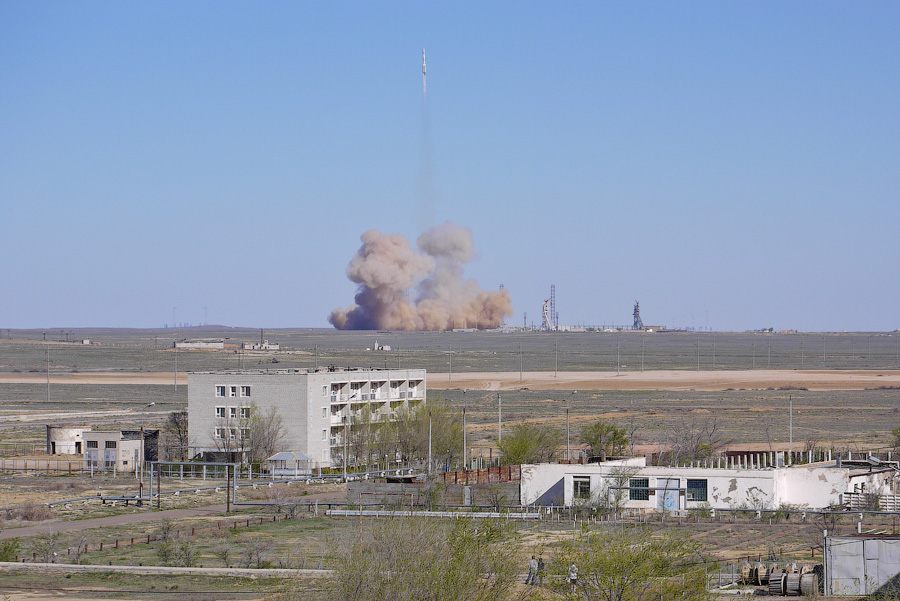

Ignition !

Wh-rhoaaahrr.. !! ....

About SES-1 - AMC-4R mess :
space.skyrocket.de : SES 1, 2, 3

Orbital Sciences Corporation announced in May 2007 that it has received an order from SES AMERICOM for as many as five new satellites over a multi-year period. Orbital stated that SES AMERICOM has placed a firm order for two new satellites, the first designated as AMC-5R and the second a ground spare that will be launched to another orbital location as a future replacement satellite.

...
...

In early 2010, the satellites were renamed from AMC 4R, AMC 5R and AMC groundspare to SES 1, 2 and 3 respectively.



[Zipi]

Re: April 24, Proton-M - SES 1

Official Roscosmos launch video collection:
[youtube]http://www.youtube.com/watch?v=M6X998tM2b0[/youtube]



[EarthlingX]

There was some weird black smoke coming out from the right side of the first stage, and then later in flight there was at least one flash of light in the exhaust plume, but everything else was normal. What was that ?



[Zipi]

There was some weird black smoke coming out from the right side of the first stage, and then later in flight there was at least one flash of light in the exhaust plume, but everything else was normal. What was that ?

Actually that is a brown smoke... And it happens every single Proton launch. I don't know what it is, but I suspect it is produced by APU or something similar. Rather soon every at launch it creates big brown cloud and immediately stabilizes to faint brown line.

If somebody knows what it is, please share your knowledge.



[EarthlingX]

I checked other launches, well, at least one, and i didn't see that smoke, that's why i'm curious.
I don't remember seeing that anywhere else either.
Mission control wasn't disturbed by that smoke, nobody peeped about it - 'polyot normalniy' ..



[Zipi]

I checked other launches, well, at least one, and i didn't see that smoke, that's why i'm curious.
I don't remember seeing that anywhere else either.
Mission control wasn't disturbed by that smoke, nobody peeped about it - 'polyot normalniy' ..

I have looked Proton launches very closely and that dark brown smoke is always there... However since it comes only one corner of the rocket it is not visible from all angles.

I saw also one animation from Proton launch sometime ago and that brown smoke vere present even that one.



[EarthlingX]

Aah.. ok. I will keep my eyes open, thanks



[Zipi]

Take a look at this Glonass satellite launch animation:
[youtube]http://www.youtube.com/watch?v=N9wc18fMv4A[/youtube]

You can see the brown smoke also in this animation, so it is there for purpose. Still I'd like to know why Proton farts it out.



[EarthlingX]

Nice and interesting video

Hm..

2 sec/frame :

[youtube]http://www.youtube.com/watch?v=y8cHiIA_CcM[/youtube]
